Melt blown cloth Slitter
-

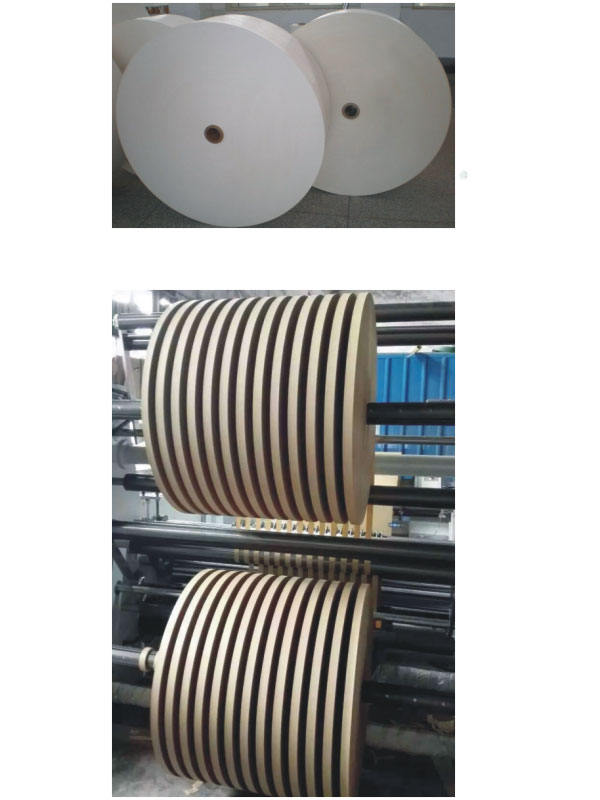

This machine is used for slitting and rewinding various large rolling materials such as paper, (50g/m2~600g/m2)Kraft paper, coated paper, aluminum foil, PVC, plastic material, etc.。
1.This machine adopts PLC(siemens) touch screen control. Three motor servo control and automatic taper tension, central surface reeling. Frequency convertertiming for main motor, keeping speed up and stable operation.
2.It has the functions of auto metering, automatic alarm, etc. Adopt A and B pneumatic shaft structure for rewinding, easy for loading and unloading.
3.It adopts photoelectric automatic error correction adjustment system for unwinding, anomalistic materials will be easy slit.
4.Equipped with automatic waste film blowing device.
5.Automatic material loading by pneumatic, matched with air.
| 型號 | Model | YS-1100A | YS-1300A | YS-1600A |
| 放卷最大寬度 | Max. Width of unwinding | 1100mm | 1300mm | 1600mm |
| 放卷最大直徑 | Max. Diameter of unwinding | ￠1400mm | ￠1400mm | ￠1400mm |
| 分切最小寬度 | Min. Width of slitting | 30mm | 30mm | 30mm |
| 收卷最大直徑 | Max. Diameter of rewinding | ￠1000mm | ￠1000mm | ￠1000mm |
| 分切速度 | Speed | ≤500-600m/min | ≤500-600m/min | ≤500-600/min |
| 整機(jī)功率 | Total power | 20kw | 22kw | 24kw |
| 適用電源 | Power supply | 380V/50hz | 380V/50hz | 380V/50hz |
| 機(jī)器重量 | Weight | 3200kg | 3400kg | 3800kg |
| 外形尺寸 | Overall dimension (LxWxH) | 3500x3100x1900(mm) | 3500x3400x1900(mm) | 3500x3700x1900(mm) |
