YSH-D系列

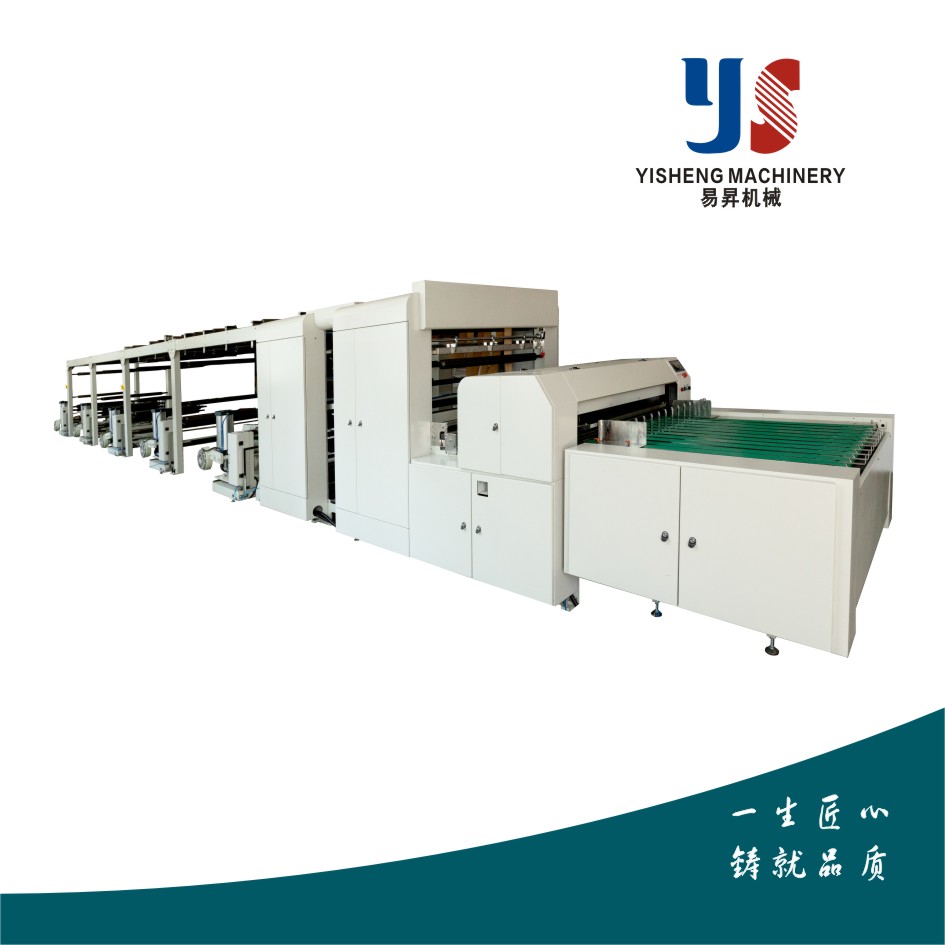

Full Automatic Intelligent High-speed Crosscutting machine(Automatic conveyor belt)
-
This machine suitable for a lot of paper, film, paper??film laminated etc best jumbo roll cutting machine.It is top quality cutting machine in china.。
Main engine frequency adjust speed,PLC touch screen control system,auto counter quantity, auto fixed length, auto machine stop when had alarm , auto tension control etc function.
| 型號(hào) | Model | YSH-1100D | YSH-1400D |
| 原材料最大直徑 | Max diameter of material | 1100mm | 1400mm |
| 最大截切寬度 | Max. Diameter Of Unwinding | ￠1400mm | ￠1400mm |
| 縱向分切最小寬度 | Min.width of cutting | 50mm | 50mm |
| 裁切長度 | Length of cutting |
20-1500mm |
20-1500mm |
| 裁切速度 | Speed | 30-200times/min | 30-200times/min |
| 裁切精度 | Precision | ±0.2mm | ±0.2mm |
| 電源總功率 | Total Power | 9kw | 11kw |
| 機(jī)器重量 | Weight | 4000kg | 4200kg |
| 外形尺寸 | Overall dimension (LxWxH) | 6000x1900x1400(mm) | 6000x2200x1400(mm) |
